Firewall nat konfigürasyonu

nat

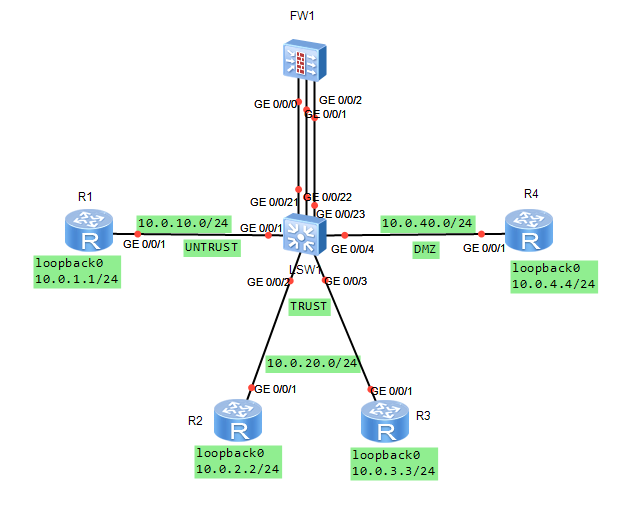

  1. Cihaz ip address yapılandırması.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R1
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 1.1.1.1 24
[R1-GigabitEthernet0/0/1]interface loopback 0
[R1-LoopBack0]ip address 10.0.1.1 24
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R2
[R2]interface GigabitEthernet0/0/1
[R2-GigabitEthernet0/0/1]ip address 10.0.20.2 24
[R2-GigabitEthernet0/0/1]interface loopback 0
[R2-LoopBack0]ip address 10.0.2.2 24
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R3
[R3]interface GigabitEthernet0/0/1
[R3-GigabitEthernet0/0/1]ip address 10.0.20.3 24
[R3-GigabitEthernet0/0/1]interface loopback 0
[R3-LoopBack0]ip address 10.0.3.3 24
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R4
[R4]interface GigabitEthernet 0/0/1
[R4-GigabitEthernet0/0/1]ip address 10.0.40.4 24
[R4-GigabitEthernet0/0/1]interface loopback 0
[R4-LoopBack0]ip address 10.0.4.4 24
Firewall üzerinde  layer 2 ,switch interface ve ip address konfigürasyonu yapılmaz.
Lab’da, firewall üzerinde  VLAN 12 oluşturalım ve  VLANIF 12 interfacesini oluşturalım. Trust bölgede network gatewayının IP adresi olarak VLANIF 12 interface  IP adresini yapılandıralım  ve 10.0.20.254/24 IP adresini ayarlayalım.
<Eudemon 200E>system-view
Enter system view, return user view with Ctrl+Z.
[Eudemon 200E]sysname FW
[FW]vlan 12
[FW-vlan-12]quit
[FW]interface Vlanif 12
[FW-Vlanif12]ip address 10.0.20.254 24
[FW-Vlanif12]interface ethernet 1/0/0
[FW-Ethernet1/0/0]port  access vlan 12
[FW-Ethernet1/0/0]undo interface Vlanif 1
[FW]interface Ethernet 0/0/0
[FW-Ethernet0/0/0]ip address 1.1.1.254 24
[FW-Ethernet0/0/0]interface ethernet 2/0/0
[FW-Ethernet2/0/0]ip address 10.0.40.254 24
Cihazın G0/0/1 ve G0/0/24 interfacelerine VLAN 11 i ekleyelim.
Cihazın G0/0/2 , G0/0/3 ve G0/0/22 interfacelerine VLAN 12 i ekleyelim.
Cihazın G0/0/4 ve G0/0/23 interfacelerine VLAN 13ü ekleyelim.
[Quidway]sysname S1
[S1]vlan batch 11 to 13
[S1]interface GigabitEthernet 0/0/1
[S1-GigabitEthernet0/0/1]port link-type access
[S1-GigabitEthernet0/0/1]port default vlan 11
[S1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[S1-GigabitEthernet0/0/2]port link-type access
[S1-GigabitEthernet0/0/2]port default vlan 12
[S1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/3
[S1-GigabitEthernet0/0/3]port link-type access
[S1-GigabitEthernet0/0/3]port default vlan 12
[S1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/4
[S1-GigabitEthernet0/0/3]port link-type access
[S1-GigabitEthernet0/0/3]port default vlan 13
[S1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/21
[S1-GigabitEthernet0/0/21]port link-type access
[S1-GigabitEthernet0/0/21]port default vlan 11
[S1-GigabitEthernet0/0/21]interface GigabitEthernet 0/0/22
[S1-GigabitEthernet0/0/22]port link-type access
[S1-GigabitEthernet0/0/22]port default vlan 12
[S1-GigabitEthernet0/0/22]interface GigabitEthernet 0/0/23
[S1-GigabitEthernet0/0/23]port link-type access
[S1-GigabitEthernet0/0/23]port default vlan 13
  1. Network iletişimi için static routei yapılandıralım.
[R2]ip route-static 0.0.0.0 0 10.0.20.254
[R3]ip route-static 0.0.0.0 0 10.0.20.254
[R4]ip route-static 0.0.0.0 0 10.0.40.254
[FW]ip route-static 10.0.2.0 24 10.0.20.2
[FW]ip route-static 10.0.3.0 24 10.0.20.3
[FW]ip route-static 10.0.4.0 24 10.0.40.4
[FW]ip route-static 0.0.0.0 0 1.1.1.1
Bağlantıları kontrol edelim.
[FW]ping 10.0.1.1
PING 10.0.1.1: 56  data bytes, press CTRL_C to break
Reply from 10.0.1.1: bytes=56 Sequence=1 ttl=255 time=1 ms
Reply from 10.0.1.1: bytes=56 Sequence=2 ttl=255 time=1 ms
Reply from 10.0.1.1: bytes=56 Sequence=3 ttl=255 time=1 ms
Reply from 10.0.1.1: bytes=56 Sequence=4 ttl=255 time=1 ms
Reply from 10.0.1.1: bytes=56 Sequence=5 ttl=255 time=1 ms
— 10.0.1.1 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/1 ms
[FW]ping 10.0.2.2
PING 10.0.2.2: 56  data bytes, press CTRL_C to break
Reply from 10.0.2.2: bytes=56 Sequence=1 ttl=255 time=1 ms
Reply from 10.0.2.2: bytes=56 Sequence=2 ttl=255 time=1 ms
Reply from 10.0.2.2: bytes=56 Sequence=3 ttl=255 time=1 ms
Reply from 10.0.2.2: bytes=56 Sequence=4 ttl=255 time=1 ms
Reply from 10.0.2.2: bytes=56 Sequence=5 ttl=255 time=1 ms
— 10.0.2.2 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/1 ms
[FW]ping 10.0.3.3
PING 10.0.3.3: 56  data bytes, press CTRL_C to break
Reply from 10.0.3.3: bytes=56 Sequence=1 ttl=255 time=1 ms
Reply from 10.0.3.3: bytes=56 Sequence=2 ttl=255 time=1 ms
Reply from 10.0.3.3: bytes=56 Sequence=3 ttl=255 time=1 ms
Reply from 10.0.3.3: bytes=56 Sequence=4 ttl=255 time=1 ms
Reply from 10.0.3.3: bytes=56 Sequence=5 ttl=255 time=1 ms
— 10.0.3.3 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/1 ms
[FW]ping 10.0.4.4
PING 10.0.4.4: 56  data bytes, press CTRL_C to break
Reply from 10.0.4.4: bytes=56 Sequence=1 ttl=255 time=1 ms
Reply from 10.0.4.4: bytes=56 Sequence=2 ttl=255 time=1 ms
Reply from 10.0.4.4: bytes=56 Sequence=3 ttl=255 time=1 ms
Reply from 10.0.4.4: bytes=56 Sequence=4 ttl=255 time=1 ms
Reply from 10.0.4.4: bytes=56 Sequence=5 ttl=255 time=1 ms
— 10.0.4.4 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 1/1/1 ms
  1. Security i interfacelerde etkinleştirme .
Default olarak  firewallda 4  bölge oluşturulur . Bunlar    local, trusted, untrusted ve  DMZ  bölgeleridir.
Bu labda , trusted, untrusted ve  DMZ bölgelerini kullanılır.
[FW]firewall zone dmz
[FW-zone-dmz]add interface Ethernet 2/0/0
[FW-zone-dmz]firewall zone trust
[FW-zone-trust]add interface Vlanif 12
[FW-zone-trust]firewall zone untrust
[FW-zone-untrust]add interface Ethernet 0/0/0
Default  olarak, tüm bölgeler arasında iletişim normaldir. NAT etkin değil; Bu nedenle, dış bölgeleri, iç bölgeleri ve DMZ bölgesi ile iletişim kurulamıyor.
  1. Bölgeler arasındaki security filtreleme yapılandırması.
Paketleri  10.0.2.0 ve 10.0.3.0 netwoklerinden iletmek için Untrust  bölgeye trust bölgeyi yapılandıralım. Untrust  bölgeden DMZ bölgesine  Telnet ve FTP isteği paketleri 10.0.4.4 ağ netwoku üzerinden geçmesi için  yapılandıralım.
[FW]firewall session link-state check
[FW]policy interzone trust untrust outbound
[FW-policy-interzone-trust-untrust-outbound]policy 0
[FW-policy-interzone-trust-untrust-outbound-0]policy source 10.0.2.0 0.0.0.255
[FW-policy-interzone-trust-untrust-outbound-0]policy source 10.0.3.0 0.0.0.255
[FW-policy-interzone-trust-untrust-outbound-0]action permit
[FW-policy-interzone-trust-untrust-outbound-0]quit
[FW-policy-interzone-trust-untrust-outbound]quit
[FW]policy interzone dmz untrust inbound
[FW-policy-interzone-dmz-untrust-inbound]policy 0
[FW-policy-interzone-dmz-untrust-inbound-0]policy destination 10.0.4.4 0
[FW-policy-interzone-dmz-untrust-inbound-0]policy service service-set telnet
[FW-policy-interzone-dmz-untrust-inbound-0]policy service service-set ftp
[FW-policy-interzone-dmz-untrust-inbound-0]action permit
[FW-policy-interzone-dmz-untrust-inbound-0]quit
  1. NAT ip address yapılandırması.
Addff
[FW]nat-policy interzone trust untrust outbound
[FW-nat-policy-interzone-trust-untrust-outbound]policy 0
[FW-nat-policy-interzone-trust-untrust-outbound-0]policy source 10.0.2.0 0.0.0.255
[FW-nat-policy-interzone-trust-untrust-outbound-0]action source-nat
[FW-nat-policy-interzone-trust-untrust-outbound-0]easy-ip Ethernet 0/0/0
Konfigürasyonu kontrol edelim.
[R2]ping 10.0.1.1
PING 10.0.1.1: 56  data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out
— 10.0.1.1 ping statistics —
5 packet(s) transmitted
0 packet(s) received
100.00% packet loss
[R2]ping -a 10.0.2.2 10.0.1.1
PING 10.0.1.1: 56  data bytes, press CTRL_C to break
Reply from 10.0.1.1: bytes=56 Sequence=1 ttl=254 time=4 ms
Reply from 10.0.1.1: bytes=56 Sequence=2 ttl=254 time=3 ms
Reply from 10.0.1.1: bytes=56 Sequence=3 ttl=254 time=3 ms
Reply from 10.0.1.1: bytes=56 Sequence=4 ttl=254 time=3 ms
Reply from 10.0.1.1: bytes=56 Sequence=5 ttl=254 time=3 ms
— 10.0.1.1 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 3/3/4 ms
Doğrudan R2 den 10.0.1.1 ping varsa, ping başarısız olur. Extended ping kullanın. Bir kaynak IP adresi 10.0.2.2 olarak belirtildikten sonra, ping başarılı olacaktıır.
Paketin bu kaynak IP adresi NAT adres aralığında olmadığı, 10.0.20.2 olmasıdır.
[FW]display nat-policy interzone trust untrust outbound
10:46:37  2011/12/26
nat-policy interzone trust untrust outbound
policy 0 (1 times matched)
action source-nat
policy service service-set ip
policy source 10.0.2.0 0.0.0.255
policy destination any
easy-ip Ethernet0/0/0
  1. Bir adres grubu yapılandırması
Kaynak IP adresine  tercüme ve adres grubuna NAT politikasına  bağlamak için bir adres grubunu yapılandıralım.
[FW]nat address-group 1 1.1.1.3 1.1.1.10
[FW]nat-policy interzone trust untrust outbound
[FW-nat-policy-interzone-trust-untrust-outbound]policy 1
[FW-nat-policy-interzone-trust-untrust-outbound-0]policy source 10.0.3.0 0.0.0.255
[FW-nat-policy-interzone-trust-untrust-outbound-0]action source-nat
[FW-nat-policy-interzone-trust-untrust-outbound-0]address-group 1
Trust ve untrust bölgeleri kontrol edelim.
[R3]ping -a 10.0.3.3 10.0.1.1
PING 10.0.1.1: 56  data bytes, press CTRL_C to break
Reply from 10.0.1.1: bytes=56 Sequence=1 ttl=254 time=12 ms
Reply from 10.0.1.1: bytes=56 Sequence=2 ttl=254 time=3 ms
Reply from 10.0.1.1: bytes=56 Sequence=3 ttl=254 time=4 ms
Reply from 10.0.1.1: bytes=56 Sequence=4 ttl=254 time=2 ms
Reply from 10.0.1.1: bytes=56 Sequence=5 ttl=254 time=3 ms
— 10.0.1.1 ping statistics —
5 packet(s) transmitted
5 packet(s) received
0.00% packet loss
round-trip min/avg/max = 2/4/12 ms
Extended  ping kullanın. Bir kaynak IP adresi 10.0.3.3 olarak belirtildikten sonra, ping başarılı.
[FW]display nat-policy interzone trust untrust outbound
10:52:37  2011/12/26
nat-policy interzone trust untrust outbound
policy 0 (2 times matched)
action source-nat
policy service service-set ip
policy source 10.0.2.0 0.0.0.255
policy destination any
easy-ip Ethernet0/0/0
policy 1 (0 times matched)
action source-nat
policy service service-set ip
policy source 10.0.3.0 0.0.0.255
policy destination any
address-group 1
Trust bölgeden  IP adresi 10.0.2.0/24 ve 10.0.3.0/24 untrust bölgeye  erişebilirsiniz.
  1. 0.4.4 IP adresi ile intranet sunucu tarafından sağlanan hizmetlerin reklamı yapılandırması.
Map Telnet ve FTP servis  için  10.0.4.4 ve 1.1.1.100 ettkinleştirelim.
[FW]nat server protocol tcp global 1.1.1.100 telnet inside 10.0.4.4 telnet
[FW]nat server protocol tcp global 1.1.1.100 ftp inside 10.0.4.4 ftp
Final Configurations
[FW]display current-configuration
#
sysname FW
#
nat address-group 1 1.1.1.3 1.1.1.10
nat server 0 protocol tcp global 1.1.1.100 telnet inside 10.0.4.4 telnet
nat server 1 protocol tcp global 1.1.1.100 ftp inside 10.0.4.4 ftp
nat server 2 protocol tcp global 1.1.1.200 telnet inside 10.0.3.3 telnet
#
vlan batch 1 12
#
firewall session link-state check
#
interface Vlanif12
ip address 10.0.20.254 255.255.255.0
#
interface Ethernet0/0/0
ip address 1.1.1.254 255.255.255.0
#
interface Ethernet1/0/0
portswitch
port link-type access
port access vlan 12
#
interface Ethernet2/0/0
ip address 10.0.40.254 255.255.255.0
#
firewall zone trust
set priority 85
add interface Vlanif12
#
firewall zone untrust
set priority 5
add interface Ethernet0/0/0
#
firewall zone dmz
set priority 50
add interface Ethernet2/0/0
#
firewall interzone dmz untrust
detect ftp
#
ip route-static 0.0.0.0 0.0.0.0 1.1.1.1
ip route-static 10.0.2.0 255.255.255.0 10.0.20.2
ip route-static 10.0.3.0 255.255.255.0 10.0.20.3
ip route-static 10.0.4.0 255.255.255.0 10.0.40.4
#
policy interzone trust untrust outbound
policy 0
action permit
policy source 10.0.2.0 0.0.0.255
policy source 10.0.3.0 0.0.0.255
#
policy interzone dmz untrust inbound
policy 0
action permit
policy service service-set ftp
policy service service-set telnet
policy destination 10.0.4.4 0
#
nat-policy interzone trust untrust outbound
policy 0
action source-nat
policy source 10.0.2.0 0.0.0.255
easy-ip Ethernet0/0/0
policy 1
action source-nat
policy source 10.0.3.0 0.0.0.255
address-group 1
#
nat-policy zone trust
policy 0
action source-nat
policy source 10.0.2.0 0.0.0.255
policy destination 1.1.1.200 0
address-group 1
#
Return
<R1>display current-configuration
[V200R001C00SPC200]
#
sysname R1
#
#
interface GigabitEthernet0/0/1
ip address 1.1.1.1 255.255.255.0
#
interface LoopBack0
ip address 10.0.1.1 255.255.255.0
#
Return
<R2>display current-configuration
[V200R001C00SPC200]
#
sysname R2
#
interface GigabitEthernet0/0/1
ip address 10.0.20.2 255.255.255.0
#
interface LoopBack0
ip address 10.0.2.2 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.20.254
#
Return
[R3]display current-configuration
[V200R001C00SPC200]
#
sysname R3
#
interface GigabitEthernet0/0/1
ip address 10.0.20.3 255.255.255.0
#
interface LoopBack0
ip address 10.0.3.3 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.20.254
#
user-interface vty 0 4
authentication-mode none
#
Return
[R4]display current-configuration
[V200R001C00SPC500]
#
sysname R4
ftp server enable
#
#
aaa
local-user huawei password simple huawei
local-user huawei ftp-directory flash:
local-user huawei service-type ftp
#
interface GigabitEthernet0/0/1
ip address 10.0.40.4 255.255.255.0
#
interface LoopBack0
ip address 10.0.4.4 255.255.255.0
#
ip route-static 0.0.0.0 0.0.0.0 10.0.40.254
#
user-interface vty 0 4
authentication-mode none
#
Return
 <S1>display current-configuration
#
!Software Version V100R006C00SPC800
sysname S1
#
vlan batch 11 to 13
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 11
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 12
#
interface GigabitEthernet0/0/3
port link-type access
port default vlan 12
#
interface GigabitEthernet0/0/4
port link-type access
port default vlan 13
#
interface GigabitEthernet0/0/21
port link-type access
port default vlan 11
#
interface GigabitEthernet0/0/22
port link-type access
port default vlan 12
#
interface GigabitEthernet0/0/23
port link-type access
port default vlan 13
#
return
